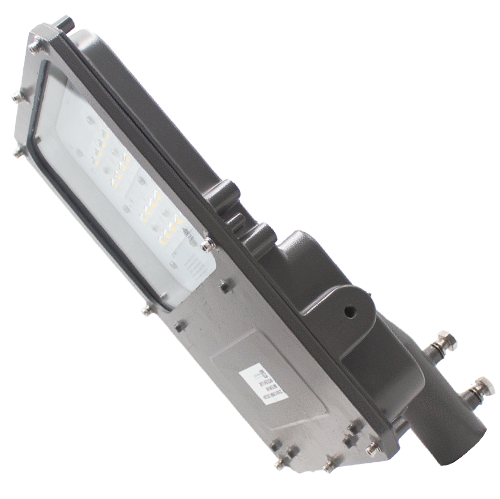

MAGVIA
Industrial LED Streetlight
60W - 115W
9 736lm - 17 579lm
MAGVIA Overview
The MAGVIA is a high-performance LED streetlight designed for residential streets, urban centres, parking areas, industrial roads and Class A and B roadways. Available from 60 W to 115 W with outputs up to 17,579 lm, it combines efficient LED performance with multiple roadway optical distributions to support safe, uniform and controlled illumination.
Its slim marine-grade aluminium housing helps reduce wind loading and minimise dirt and debris accumulation, while IP66 protection supports long-term operation in demanding outdoor environments. Hazardous-area configurations are available for Zone 2 applications up to 80 W and Zone 21 and Zone 22 applications, subject to the selected configuration and site classification.
Key Benefits
-
Urban & residential ready — engineered photometry for Class A/B roadways, parking and amenity.
-
Slim, low-drag body — reduces wind load and structural cost; smooth exterior discourages dirt build-up.
-
High output, high efficacy — up to 17 579 lm with model efficacies up to 161 lm/W.
Specifications
-
60W
-
80W
-
100W
-
115W
-
-
60W - 9,736lm
-
80W - 12,476lm
-
100W - 15,039lm
-
115W - 17,579lm
-
-
60W - 161lm/w
-
80W - 156lm/w
-
100W - 152lm/w
-
115W - 145lm/w
-
-
4000K Standard
-
2200K / 3000K / 5000K / 6500K Optional
-
-
L90B10 - 100 000 Hours
-
-
>70
-
-
220V - 240V (Standard)
-
90V - 305V (Optional)
-
-
-40°C to 55°C
-
-
10kV (Standard)
-
20kV (Optional)
-
-
IP66
-
-
IK08
-
-
SABS Approved
-
-
Glass - IK08 (Standard)
-
Polycarbonate - IK09/10 (Optional)
-
-
Marine Grade Aluminium
-
-
Spigot - 42mm diameter (side entry)
-
Applications
-
Class A & B roadway lighting
-
Industrial road lighting
-
Residential street lighting
-
Town and city centres
-
Parking areas
-
Security lighting
-
Zone 2 hazardous areas – up to 80 W
-
Zone 21 and Zone 22 hazardous areas
